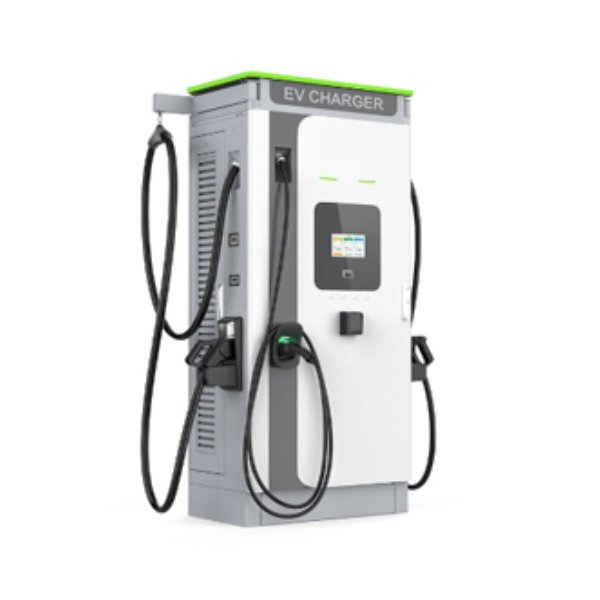

Technical Specifications – High Power EV Charger
| Specification | Details |
|---|---|
| Input Voltage | 200V – 480V |
| Input Frequency | 45HZ – 65HZ |
| Rated Power | 20KW / 30KW / 40KW / 60KW / 80KW / 100KW / 120KW / 160KW / 240KW / 360KW / 480KW |
| Installation | Floor mounted |
| Cooling | Fan cooling or liquid cooling |
| Connectors Number | Single or dual |
| Electrical Protection | Over current protection, Residual current protection, Short circuit protection, Ground protection, Surge protection, Over/Under voltage protection, Over/Under frequency protection, Over temperature protection |
| Start Mode | Plug & Charge / RFID card / App / QR code (All optional) |
| Communication Method | WIFI / Ethernet / 3G / 4G (All optional) |
| Communication Protocol | OCPP (1.6 or 2.0), ISO 15118 (All optional) |
| Standard | GB/T 18487 20234, IEC 61851 2017, SAE J1772, etc. |
